Stainless Steel Flat Bar
Stainless steel flat steel can be composed of various stress components according to the different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves, etc.
Inquiry Now →

KEY ATTRIBUTES

Stainless steel flat steel can be composed of various stress components according to the different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves, etc.



Product Namestainless steel flat bar
TechniqueCold drawing polishing, hot rolling acid white sandblasting
Thickness3mm*20m—150mm
weight calculationWeight per meter (kg) = 0.00793 x side width (mm) x side thickness (mm)
Length3—9m、4—12m  6—15m  as requirement
standardGB/T2101—89; GB9787—88/GB9788—88; JISG3192—94; DIN17100—80; ГОСТ535—88
Delivery timeWithin 7-15 Working Days



规格





Stainless steel standard steel grade comparison table and density table



ChinaJapanUSASouth KoreaEuropean UnionAustraliaTaiwan, ChinaDensityt/m3
GB/T20878JISASTMKSBSENASCNS
12Cr13SUS403403STS4034034037.75
20Cr13SUS420J1420STS420J11.4021420420J17.75
30Cr13SUS420J2STS420J21.4028420J2420J27.75
10Cr17SUS430430STS4301.40164304307.70
68Cr17SUS440A440ASTS440A440A440A7.70
06Cr19Ni10SUS304304STS3041.43013043047.93
022Cr19Ni10SUS304L304LSTS304L1.4306304L304L7.93
06Cr17Ni12Mo2SUS316316STS3161.44013163167.98
022Cr17Ni12Mo2SUS316L316LSTS316L1.4404316L316L7.98
06Cr18Ni11TiSUS321321STS3211.45413213217.93
06Cr18Ni11NbSUS347347STS3471.4553473477.98



PRODUCT DETAILS

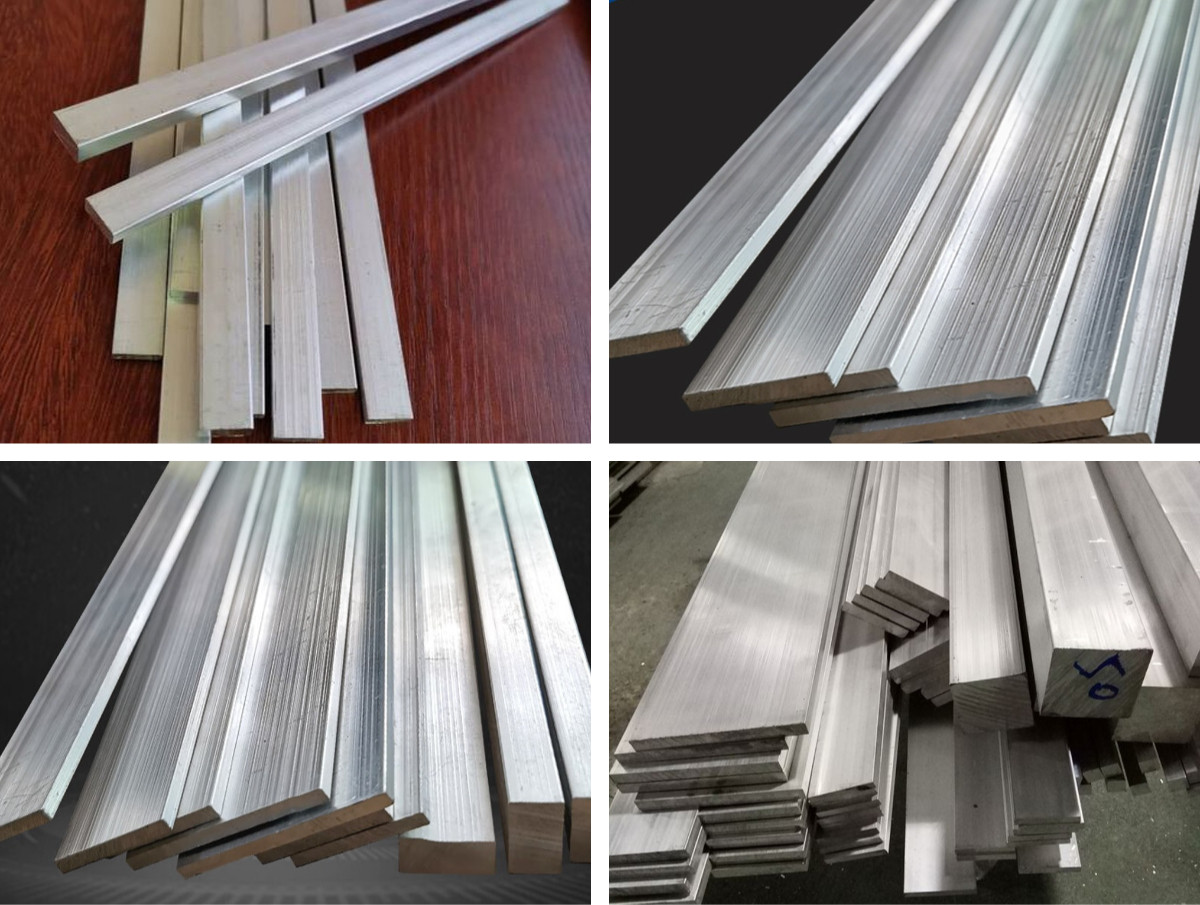

下载 - 2023-11-16T171014.398.jpg

下载 - 2023-11-16T171035.255.jpg
